How to Choose Right Walkie Talkie Charger(ONE)

Different country use different walkie talkie charger outlet plugs ,If u choose wrong Walkie Talkie Charger Outlet Plugs, u can not charge for your walkie talkie , Retevis help u choose right charger outlet plugs !

Choose right charger is not only related to walkie talkie, but happens in your daily life. If u travel aboard, u can also need to take right mobile charger in different country.

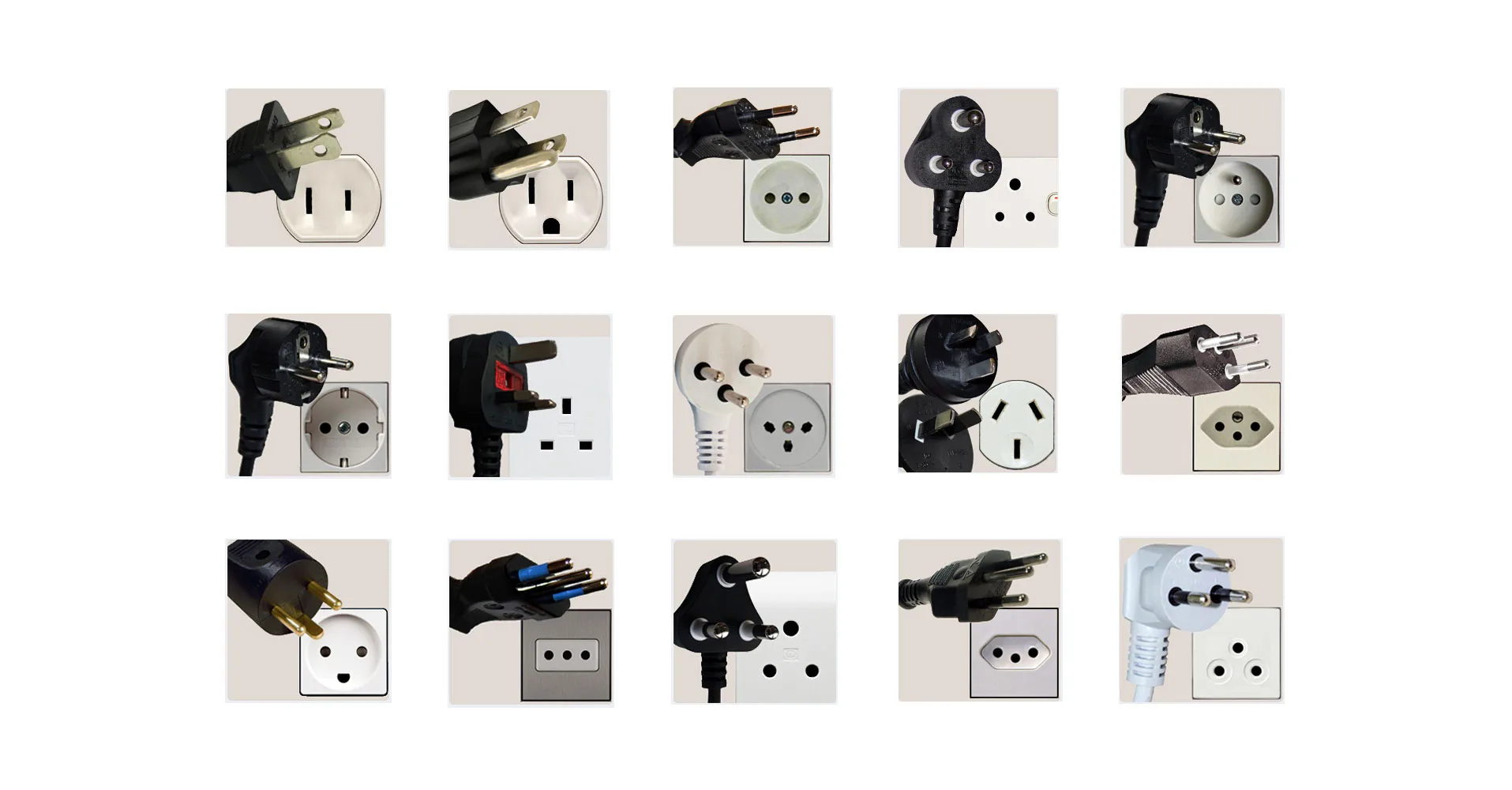

Below is a brief outline of the plugs and sockets used around the world in domestic environment. The outline map below visualises the spread of the different plug types used around the world. For easy reference, compatible plug types are represented with the same colour.

Walkie Talkie Outlet Plugs Type Distribution



 Outlet Plugs TYPE A:(used in, among others, North and Central America and Japan)

Walkie Talkie Outlet Plugs Type A

This class II ungrounded plug with two flat parallel prongs is pretty much standard in most of North and Central America. At first glance, the Japanese plug and socket seem to be identical to this standard. However, the Japanese plug has two identical flat prongs, whereas the US plug has one prong which is slightly larger. Therefore it is no problem to use Japanese plugs in the US, but the opposite does not work often. Furthermore, Japanese standard wire sizes and the resulting current ratings are different than those used on the American continent.

Type A and B plugs have two flat prongs with a hole near the tip. These holes aren’t there without a reason. If you were to take apart a type A or B socket and look at the contact wipers that the prongs slide into, you would find that in some cases they have have bumps on them. These bumps fit into the holes so that the outlet can grip the plug’s prongs more firmly. This prevents the plug from slipping out of the socket due to the weight of the plug and cord. It also improves the contact between the plug and the outlet. Some sockets, however, don’t have those bumps but just two spring-action blades that grip the sides of the plug pin, in which case the holes aren’t necessary.

There are also some special outlets which allow you to lock the cord into the socket, by putting rods through the holes. This way, for example vending machines cannot be unplugged. Moreover, electrical devices can be “factory-sealed” by the manufacturer using a plastic tie or a small padlock through one or both of the plug prong holes. For example, a manufacturer might apply a plastic band through the hole and attach it to a tag that says: “You must do X or Y before plugging in this device”. The user cannot plug in the device without removing the tag, so the user is sure to see the tag.

 Outlet Plugs TYPE B:(used in, among others, North and Central America and Japan)

Walkie Talkie Outlet Plugs Type B

This is a class I plug with two flat parallel prongs and a grounding pin (American standard NEMA 5-15/Canadian standard CS22.2, n°42). It is rated at 15 amps and although this plug is also standard in Japan, it is less frequently used than in North America. Consequently, most appliances sold in Japan use a class II ungrounded plug. As is the case with the type A standard, the Japanese type B plugs and sockets are slightly different from their American counterparts.

An ungrounded version of the North American NEMA 5-15 plug is commonly used in Central America and parts of South America. It is therefore common for equipment users to simply cut off the grounding pin that the plug can be mated with a two-pole ungrounded socket.

 Outlet Plugs TYPE C:(used in all countries of Europe except the United Kingdom, Ireland, Cyprus and Malta)

Walkie Talkie Outlet Plugs Type C

This two-wire plug is ungrounded and has two round prongs. It is popularly known as the europlug which is described in CEE 7/16. This is probably the single most widely used international plug. It will mate with any socket that accepts 4.0 – 4.8 mm round contacts on 19 mm centres. The plug is generally limited for use in class II applications that require 2.5 amps or less. It is, of course, unpolarised. It is commonly used in all countries of Europe except the United Kingdom and Ireland. It is also used in various parts of the developing world. Whereas type C plugs are very commonly used, this is not the case for type C sockets. This kind of socket is the older and ungrounded variant of socket types E, F, J, K and L. Nowadays most countries demand grounded sockets to be installed in new buildings. Since type C sockets are ungrounded, they are currently being phased out in many countries and replaced by type E, F, J, K or L (depending on the country). A type C plug fits perfectly into a type E, F, J, K or L socket.

 Outlet Plugs TYPE D:(used almost exclusively in India, Sri Lanka, Nepal and Namibia)

Walkie Talkie Outlet Plugs Type D plug

India has standardised on a plug which was originally defined in British Standard 546 (the standard in Great Britain before 1962). This plug has three large round pins in a triangular pattern. It is rated at 5 amps. Type M, which has larger pins and is rated at 15 amps, is used alongside type D for larger appliances in India, Sri Lanka, Nepal and Namibia. Some sockets can take both type M and type D plugs.

Although type D is now almost exclusively used in India, Sri Lanka, Nepal and Namibia, it can still occasionally be found in hotels and theatres in the UK and Ireland. It should be noted that tourists should not attempt to connect anything to a BS546 round-pin outlet found in the UK or Ireland as it is likely to be on a circuit that has a special purpose: e.g. for providing direct current (DC) or for plugging in lamps that are controlled by a light switch or a dimmer. Outlet Plugs TYPE E:(primarily used in France, Belgium, Poland, Slovakia, the Czech Republic, Tunisia and Morocco)

Walkie Talkie Outlet Plugs Type E

France, Belgium and some other countries have standardised on a socket which is different from the CEE 7/4 socket (type F) that is standard in Germany and other continental European countries. The reason for incompatibility is that grounding in the E socket is accomplished with a round male pin permanently mounted in the socket. The plug itself is similar to C except that it is round and has the addition of a female contact to accept the grounding pin in the socket. In order to bridge the differences between sockets E and F, the CEE 7/7 plug was developed (see photo above): it has grounding clips on both sides to mate with the type F socket and a female contact to accept the grounding pin of the type E socket. The original type E plug, which does not have grounding clips, is no longer used, although very rarely it can still be found on some older appliances. Note that the CEE 7/7 plug is polarised when used with a type E outlet. The plug is rated at 16 amps. Above that, equipment must either be wired permanently to the mains or connected via another higher power connector such as the IEC 309 system. A type C plug fits perfectly into a type E socket.

Outlet Plugs TYPE F:(used in, among others, Germany, Austria, the Netherlands, Sweden, Norway, Finland, Portugal, Spain and Eastern Europe)

Walkie Talkie Outlet Plugs Type F

Plug F, known as CEE 7/4 and commonly called “Schuko plug”, which is the acronym of “Schutzkontakt”, a German word meaning “earthed/grounded contact”. The plug was designed in Germany shortly after the First World War. It is similar to C except that it is round and has the addition of two grounding clips on the side of the plug. It has two 4.8 mm round contacts on 19 mm centres. Because the CEE 7/4 plug can be inserted in either direction into the receptacle, the Schuko connection system is unpolarised (i.e. line and neutral are connected at random). It is used in applications up to 16 amps. Above that, equipment must either be wired permanently to the mains or connected via another higher power connector such as the IEC 309 system. In order to bridge the differences between sockets E and F, the CEE 7/7 plug was developed (see photo above). This plug, which is shown above, has grounding clips on both sides to mate with the type F socket and a female contact to accept the grounding pin of the type E socket. The original type F plug, which does not have this female contact, is still available at the DIY shops but only in a rewireable version. A type C plug fits perfectly into a type F socket.

The Russian Federation uses a standard plug and socket defined in Russian Standard Gost 7396 which is similar to the Schuko standard. Contacts are also on 19 mm centres, but the diameter of this contact is 4.0 mm compared to 4.8 mm which is standard in Continental Europe. It is possible to mate Russian plugs with Schuko outlets, but Russian sockets will not allow to connect type E and F plugs as the outlets have smaller hole diameters than the pins of those two plugs mentioned. Many official standards in Eastern Europe are virtually identical to the Schuko standard. Furthermore, one of the protocols governing the reunification of Germany provided that the DIN and VDE standards would prevail without exception. The former East Germany was required to confirm to the Schuko standard. It appears that nowadays most if not all of the Eastern European countries use the Schuko standard.

 Outlet Plugs TYPE G:(mainly used in the United Kingdom, Ireland, Cyprus, Malta, Malaysia, Singapore and Hong Kong)

Walkie Talkie Outlet Plugs Type G

This plug has three rectangular prongs that form a triangle. British Standard BS 1363 requires use of a three-wire grounded and fused plug for all connections to the power mains (including class II, two-wire appliances). British power outlets incorporate shutters on line and neutral contacts to prevent someone from pushing a foreign object into the socket.

The British domestic electrical system uses a ring circuit in the building which is rated for 32 amps (6 amps for lighting circuits which are usually spurs). Moreover, there is also a fusing in the plug; a cartridge fuse, usually of 3 amps for small appliances like radios etc. and 13 amps for heavy duty appliances such as heaters. Almost everywhere else in the world a spur main system is used. In this system each wall socket, or group of sockets, has a fuse at the main switchboard whereas the plug has none. So if you take some foreign appliance to the UK, you can use an adaptor, but technically it must incorporate the correct value fuse. Most would have a 13 amps one, too big for the computer for example. BS 1363 was published in 1962 and since that time it has gradually replaced the earlier standard plugs and sockets (type D) (BS 546).

British plugs are no doubt the safest in the world, but also the most hulking and cumbersome. That’s why people often make fun of them saying that British plugs are mostly bigger than the appliance they’re connected to…

Outlet Plugs TYPE H:(used exclusively in Israel)

Walkie Talkie Outlet Plugs Type H

This plug is unique to Israel. It has two flat prongs like the type B plug, but they form a V-shape rather than being parallel. Type H plugs have got a grounding pin as well and are rated at 16 amps. In 1989 Israel standardised on a new version of the type H socket: the holes were made round in order to accommodate type C plugs as well. The slots for the prongs have widenings in the middle specifically to allow type C prongs to fit in. The flat-bladed type H plugs (lower picture) are currently being phased out in favour of round-pinned ones (upper picture).

Outlet Plugs TYPE I:(mainly used in Australia, New Zealand, Papua New Guinea and Argentina)

Walkie Talkie Outlet Plugs Type I

This plug has also a grounding pin and two flat prongs forming a V-shape. There is an ungrounded version of this plug as well, with only two flat V-shaped prongs. Although the above plug looks very similar to the one used in Israel (type H), both plugs are not compatible. Australia’s standard plug/socket system is described in SAA document AS 3112 and is used in applications up to 10 amps. A plug/socket configuration with rating at 15 amps (ground pin is wider: 8 mm instead of 6.35 mm) is also available. A standard 10 amp plug will fit into a 15 amp outlet, but a 15 amp plug only fits this special 15 amp socket. There is also a 20 amp plug whose prongs are wider still. A lower-amperage plug will always fit into a higher-amperage outlet but not vice versa. Although there are slight differences, the Australian plug mates with the socket used in the People’s Republic of China (mainland China).

Outlet Plugs TYPE J:(used almost exclusively in Switzerland and Liechtenstein)

Walkie Talkie Outlet Plugs Type J

Switzerland has its own standard which is described in SEC 1011. This plug is similar to C, except that it has the addition of a grounding pin. This connector system is rated for use in applications up to 10 amps. Above 10 amps, equipment must be either wired permanently to the electrical supply system with appropriate branch circuit protection or connected to the mains with an appropriate high power industrial connector.

 Outlet Plugs TYPE K:(used almost exclusively in Denmark and Greenland)

Walkie Talkie Outlet Plugs Type K

The Danish standard is described in Afsnit 107-2-D1. The plug is similar to F except that it has a grounding pin instead of grounding clips. A type C plug fits perfectly into a type K socket. The Danish socket will also accept either the CEE 7/4 or CEE 7/7 plugs: however, there is no grounding connection with these plugs because a male ground pin is required on the plug. Because of the huge amount of E/F plugs in Denmark, the Danish government decided to make it legal to install type E instead of type K sockets from 2008 onwards.

Outlet Plugs TYPE L:(used almost exclusively in Italy and randomly found throughout North Africa)

Walkie Talkie Outlet Plugs Type L

The Italian grounded plug/socket standard, CEI 23-16/VII, includes two styles rated at 10 and 16 amps. They differ in terms of contact diameter and spacing, and are therefore incompatible with each other. The plugs are similar to C except that they are earthed by means of a centre grounding pin. Because they can be inserted in either direction at random, they are unpolarised. A type C plug fits perfectly into a type L socket. Nowadays there are also “universal” sockets available, which look exactly like type F sockets (with grounding clips), but also have a grounding hole in the middle.

Outlet Plugs TYPE M:(used almost exclusively in South Africa, Swaziland and Lesotho)

Walkie Talkie Outlet Plugs Type M

This plug resembles the Indian type D plug, but its pins are much larger. Type M is rated at 15 amps. Although type D is standard in India, Sri Lanka, Nepal and Namibia, type M is also used for larger appliances. Some sockets over there can take both type M and type D plugs. Type M is also used in Israel for heavy appliances such as air-conditioning circuits (in cases where wall-mounted units are plugged in to a dedicated socket) and certain types of washing machines.

Trick to know the local voltage

In case you forget to check what the local voltage is in the country you’re going to: here’s a small trick. Just take a look at the glass of an ordinary light bulb or stop at a supermarket and note what is printed on a light bulb packet!
