What are the functions of RA685 that can be programmed manually?

by Lucy
49 views

What are the functions of RA685 that can be programmed manually?

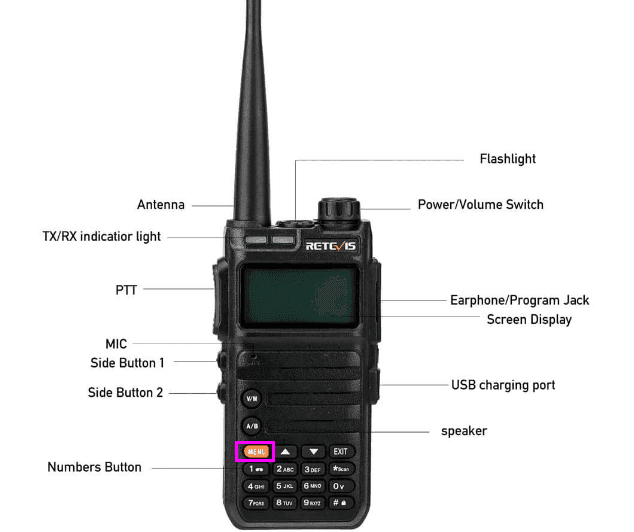

RA685 is a 5W Dual band Amateur Radio, economy in price, suitable for beginners. So what functions that can be programmed manually?

Press the “MENU” button you can make the following settings:

0.Squelch
1.Step
2.Tx Power
3.Power Save
4.Vox Level
5.Bandwidth
6.Backlight
7.Menu Exit Time
8.Dual Standby
9.Beep prompt
10.Voice
11.Tx over time
12.Rx DCS
13.Rx CTCSS
14.Tx DCS
15.Tx CTCSS
16.DTMFST
17.R-TONE
18.S-CODE
19.Scan Mode
20.PTT-ID
21.MDF-A:Frequency/Name
22.MDF-B:Frequency/Name
23.Busy Lockout
24.Key Auto Lock
25.Direction
26.Offset
27.Key1 SP
28.Key1 LP
29.Key2 SP
30.Key2 LP
31.Memory
32.Delete
33.Alarm mode
34.Tail
35.Proger
36.Language
37.Reset
38.Special DCS

VOX level: RA685 has 1-10 VOX levels, the smaller the number, the higher the sensitivity of the radio VOX.

Bandwidth: If you want to set the wide/narrow band, you can press “MENU”, and then find the fifth option, you can set the wide/narrow band.

Voltage display: long press the “0” key of the radio to display the current voltage.

Dual-standby mode: RA685 has dual-standby function, which can be turned on on the radio, the screen of the walkie-talkie displays “D”, then the dual-standby function is successfully turned on.

Key1/2 SP/LP: Shortcut keys can be set for the walkie-talkie: LAMP/SOS/FM/MONI/SEARCH.

If you have any questions, please leave messages below.
