Amazing RT25 kill other radios (Two)

by retevis
93 views

How to set RT25 Remote Stun, Remote Kill and Remote Wake Up Function

Notice 1: RT25 need to set Main Calling Party and Called Party, the main call party can be stun/ kill/ wake up the called party, the called party can not react with the main call party.
Notice 2: The 3 functions should be set in the same fruency and CTCSS. Due to the RT25 does not have a screen, so we need set 3 channels have same frequency and CTCSS, and set each channel test one function. For example, channel 1–Remote Stun, channel 2–Remote Kill, channel 3–Remote Wake Up.

The RT25 Remote Stun, Remote Kill and Remote Wake Up setting steps are following

Connect one radio to the PC by programming cable. Let us make it as the main calling party.
1, Set TDMF information
1)Set remote kill as 123
Set remote stun 456
Set remote wake up 789
2)Set the DTMF encod
M2—–456 (remote stun function)
M3—-123 (remote kill function)
M4—-789 (remote wake up function)
3)Set DTMF Decode
I1—-12345

RT25 DTMF setting in programming software

2, Set channel information
First of all, we set channel 1, channel 2 and channel 3 same frequency and CTCSS. Rx frequency = Tx frequency = 424.57500, CTCSS Dec = CTCSS Enc = 103.5,
Enter Channel 1, set the Opt. Signal –DTMF–M2–I1


Enter Channel 2, set the Opt. Signal –DTMF–M3–I1

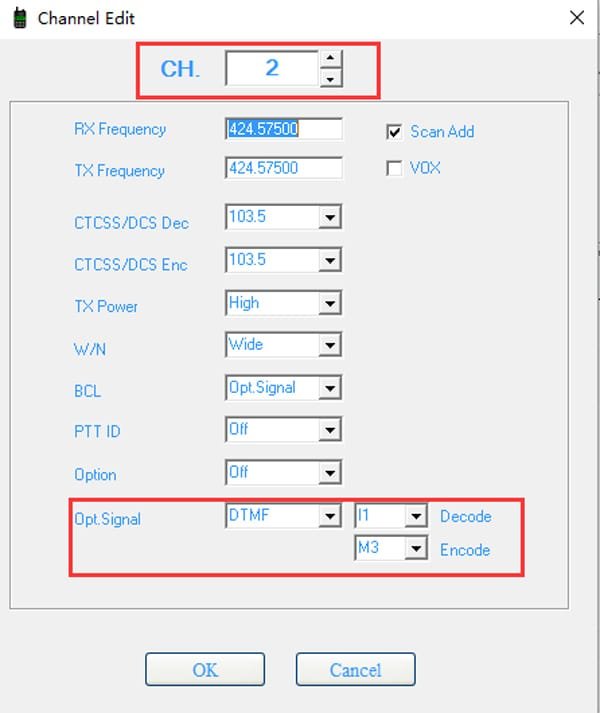

RT25 Channel 2 remote kill setting

Enter Channel 3, set the Opt. Signal –DTMF–M4–I1

channel 3 remote wake up setting

Write the data to radio. Then move away and turn off the radio, all the information has been saved to calling party.

Now set the second radio as the called party. Connect it to the PC.
1, Set same DTMF code as the calling party radio.
2, Set 3 channels as same frequency as the calling party radio. Rx frequency = Tx frequency = 424.57500, CTCSS Dec = CTCSS Enc = 103.5,
Enter each Channel, set the Opt. Signal –DTMF–Remote Stun/Kill (this radio can be controlled by the main calling party radio A)
Write the data to radio. Then move away and turn off the called party radio B.

Now turn on both of them, you could test the function in each channel.

In Channel 1, long press [key 8] of the radio A, the radio B could not transmit signal though could turn to different channels.
In channel 2, long press [key 8] of the radio A, the radio B could not receive and transmit, just stop work.
In channel 3, long press [key 8] of the radio A, the radio B could work now.
All of the above is the steps and notice.
Any questions on the settings of RT25, please feel free to leave comment under this article, or send email to our email support@retevis.com. will reply you in 24 hours.
